特點：

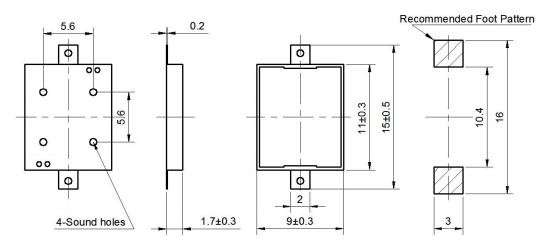

●體積小（11x9x1.8mm）
●聲壓高（5V時≥70dB）
●消耗電流?。ā?mA，5V4.1kHZ）
●安裝簡便（貼片編帶回流焊接）
電性能參數(shù)
Model No | BCE-M1109 |

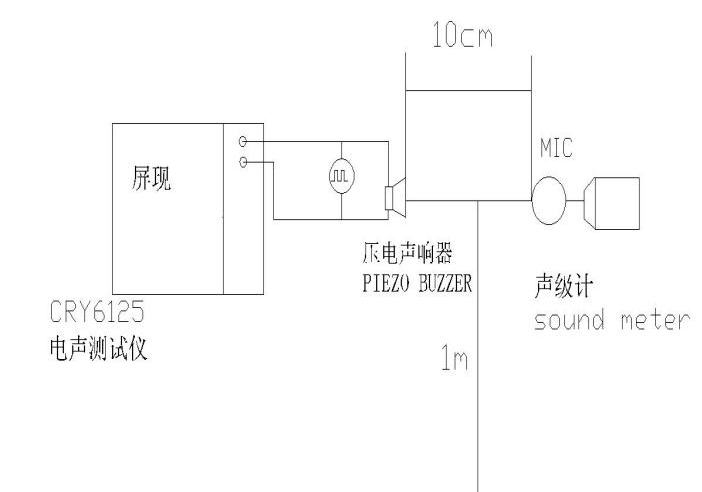

Min Sound Pressure Level | 70dB at 4KHZ at 3Vp-p at 10cm |
Operating Voltage | 1~25V |
Max Current Consumption | <5mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 12±30%nF |
Housing Material | LCP |
Operating Temperature | -30℃~+105℃ |
Storage Temperature | -40℃~+110℃ |
Weight | 0.25g |
