特點：

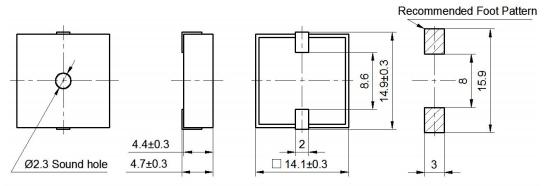

●體積?。?4x14x4.4mm）
●聲壓高（5V時≥75dB）
●消耗電流?。ā?mA，5V4.0kHZ）
●安裝簡便（貼片編帶回流焊接）
電性能參數(shù)
Model No | BCE-M1440 |

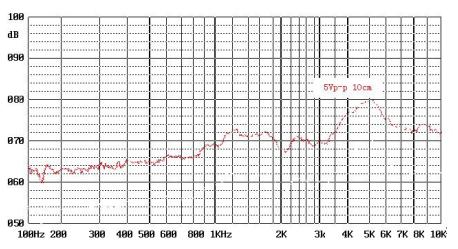

Min Sound Pressure Level | 75dB at 4KHZ at 5Vp-p at 10cm |
Operating Voltage | 1~25V |
Max Current Consumption | <5mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 12±30%nF |
Housing Material | PPS |
Operating Temperature | -30℃~+85℃ |
Storage Temperature | -40℃~+90℃ |
Weight | 1.1g |
