特點：

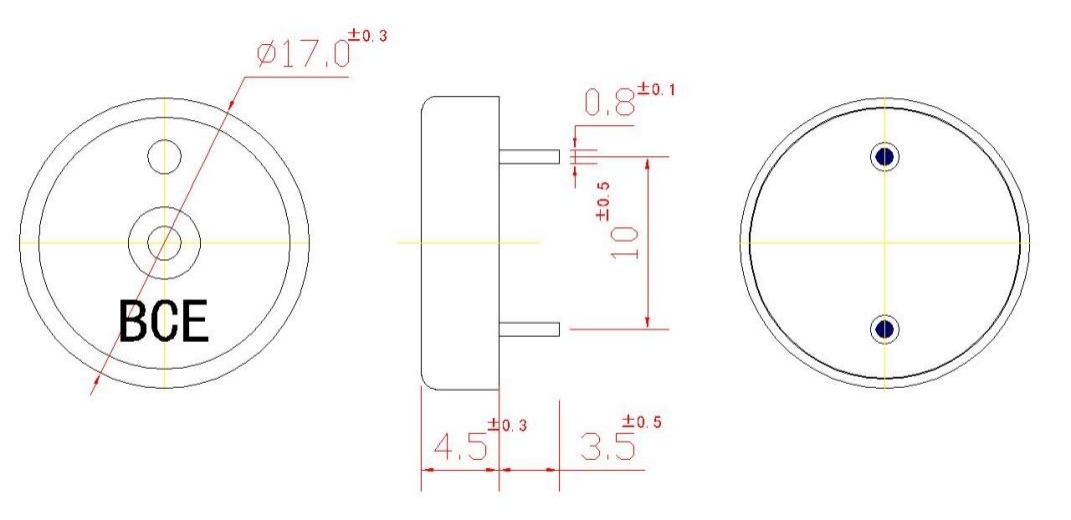

●體積?。?7x4.5mm）
●聲壓高（9V時≥80dB）
●消耗電流?。ā?mA，9V4kHZ）
●安裝簡便（臥式插入焊接）
電性能參數
Model No | BCE-1550P |

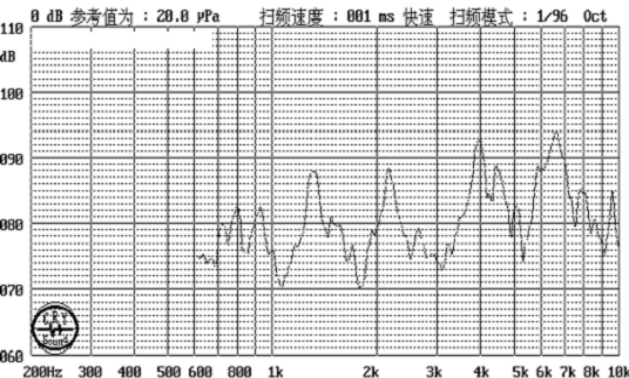

Min Sound Pressure Level | 80dB at 4KHZ at 9Vp-p at 10cm |
Operating Voltage | 3~30V |
Max Current Consumption | <3mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 14±30%nF |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.9g |
