特點：

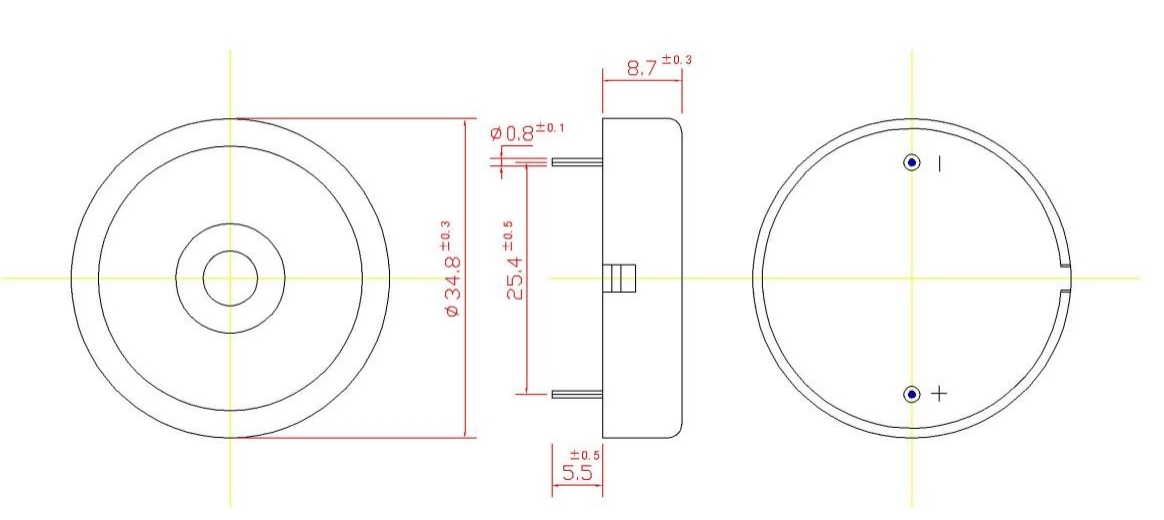

●體積?。?4.8x8.7mm）
●聲壓高（15V時≥90dB）
●消耗電流小（≤4mA，15V1.4kHZ）
●安裝簡便（臥式插入焊接）
電性能參數(shù)
Model No | BCE-31214 |
Min Sound Pressure Level | 90dB at 1.4KHZ at15Vp-p at 10cm |
Operating Voltage | 3~25V |
Max Current Consumption | <4mA |

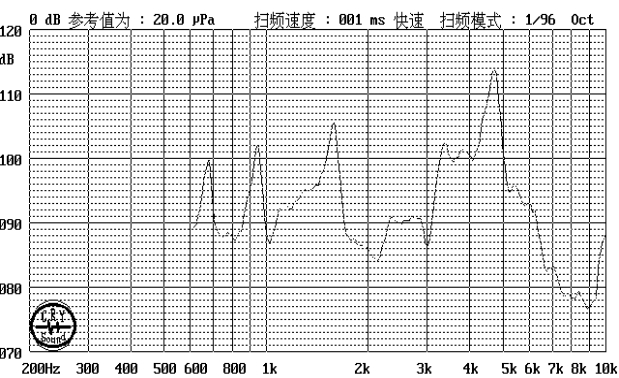

Resonant Frequency | 1.4±0.5KHz |
Capacitance at 120HZ | 45±30%nF |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 4.3g |
