特點：

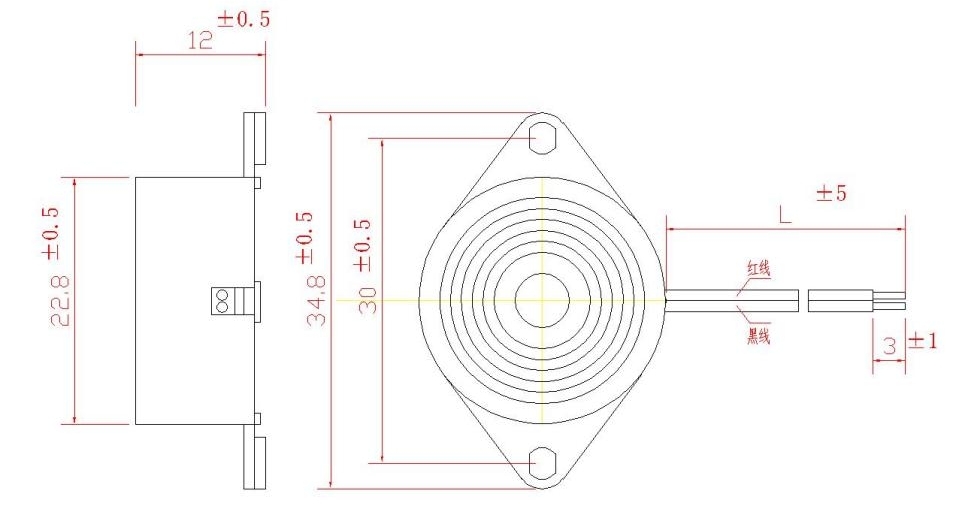

●體積小（23x12mm）
●聲壓高（12VDC時≥90dB）
●消耗電流（≤20mA，12VDC）
●安裝簡便（引線式插入焊接）
電性能參數(shù)
Model No | BCE-D23020-B2W |
Rated Voltage | 12V |
Min Sound Pressure Level | 90dB |
Operating Voltage | 3-15V |
Max Current Consumption | 20mA |
Resonant Frequency | 3200±500HZ |
Housing Material | ABS |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 6g |
