特點：

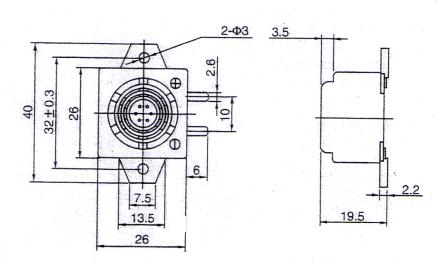

●體積?。?6x26x19.5mm）
●聲壓高（6VDC時≥85dB）
●消耗電流（≤35mA）
●安裝簡便（立式插入焊接）
電性能參數
Model No | BCE-NMB | |
Rated Voltage | 6V | 12V |

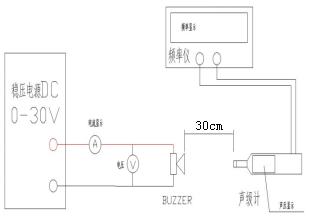

Min Sound Pressure Level | 85dB at30cm | 85dB at30cm |
Operating Voltage | 4-8V | 7-15V |
Max Current Consumption | 35mA | |
Resonant Frequency | 400±100HZ | |
Housing Material | ABS | |
Operating Temperature | -20℃~+60℃ | |
Storage Temperature | -30℃~+70℃ | |
Weight | 19g | |
