特點：

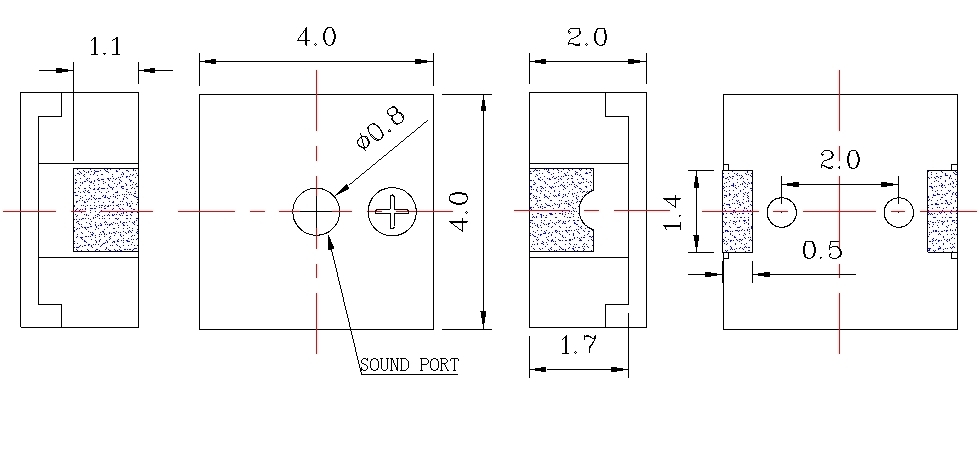

●體積小（4x4x2mm）
●聲壓高（3V時≥70dB）
●消耗電流（≤90mA，3V4kHZ）
●安裝簡便（編帶貼片焊接）
電性能參數(shù)
Model No | BCE-MX0402-0304 |

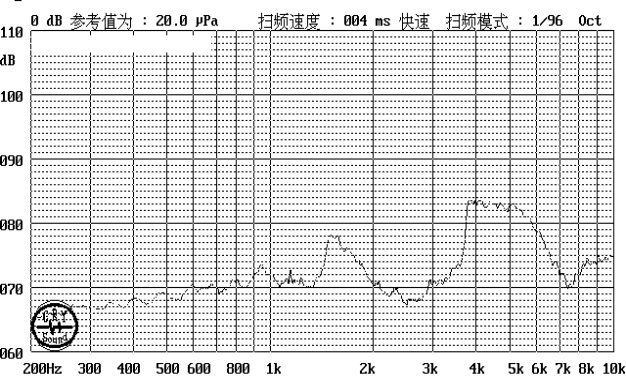

Min Sound Pressure Level | 70dB at 4KHZ at 3Vo-p at 10cm |
Operating Voltage | 2~4V |
Max Current Consumption | <90mA |
Resonant Frequency | 4KHz |
Coil lmpedance | 17±3Ω |
Housing Material | LCP |
Operating Temperature | -30℃~+80℃ |
Storage Temperature | -40℃~+85℃ |
Weight | 0.1g |
