特點(diǎn)：

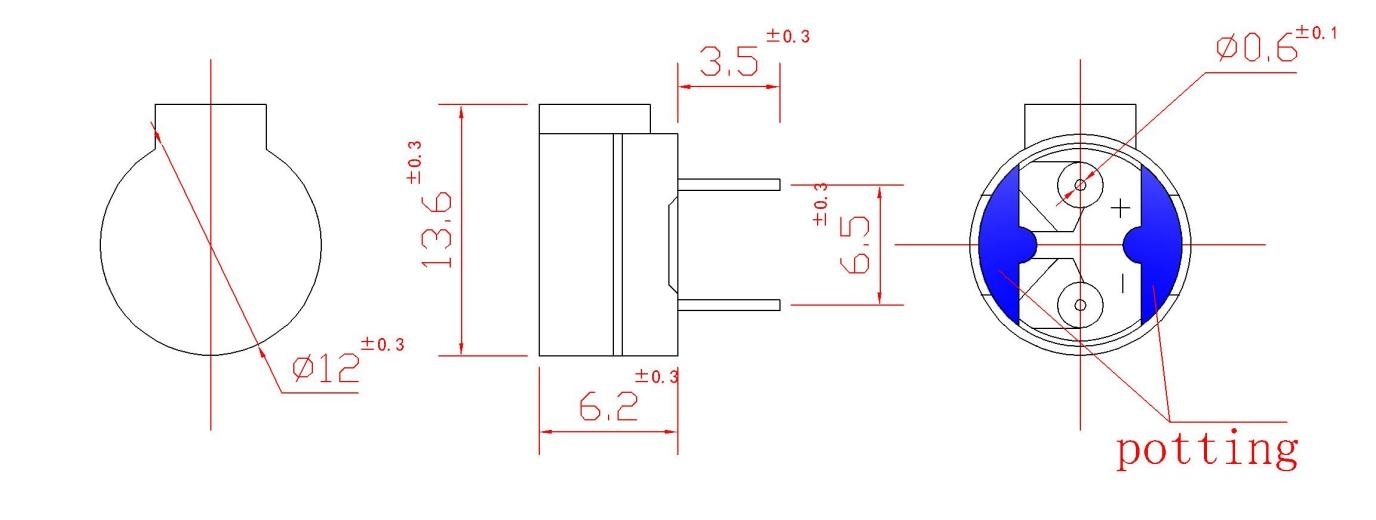

●體積?。?2x6mm）
●聲壓高（5V時≥85dB）
●消耗電流（≤80mA，5V2731HZ）
●安裝簡便（臥式插入焊接）
電性能參數(shù)
Model No | BCE-X1206C-0527 |

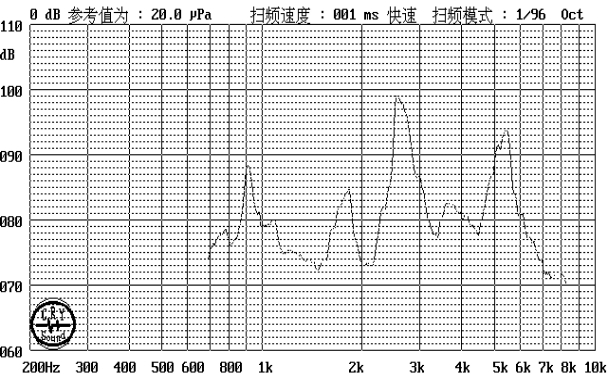

Min Sound Pressure Level | 85dB at 2731HZ at 5Vo-p at 10cm |
Operating Voltage | 2~7V |
Max Current Consumption | <80mA |
Resonant Frequency | 2731Hz |
Coil lmpedance | 42±6Ω |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.2g |
