特點(diǎn)：

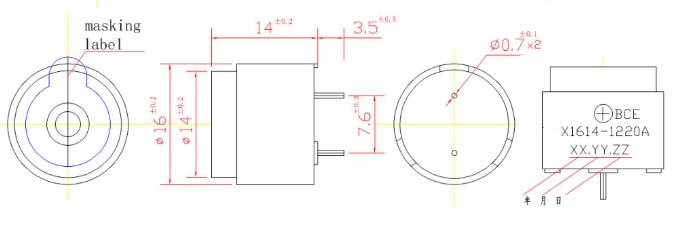

●體積?。?6x14mm）
●聲壓高（12V時(shí)≥85dB）
●消耗電流（≤60mA，5V2048HZ）
●安裝簡便（臥式插入焊接）
電性能參數(shù)
Model No | BCE-X1614-1220A |
Min Sound Pressure Level | 85dB at 2048HZ at 12Vo-p at 10cm |
Operating Voltage | 8~15V |
Max Current Consumption | <60mA |
Resonant Frequency | 2048Hz |
Coil lmpedance | 115±12Ω |
Housing Material | NPPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 6.5g |
