特點：

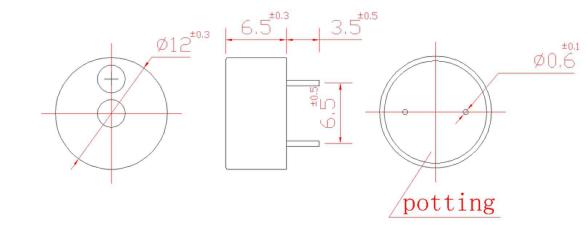

●體積?。?2x6.5mm）
●聲壓高（3V時≥82dB）
●消耗電流（≤30mA，5V2400HZ）
●安裝簡便（臥式插入焊接）
電性能參數(shù)
Model No | BCE-X12065D-0324 |

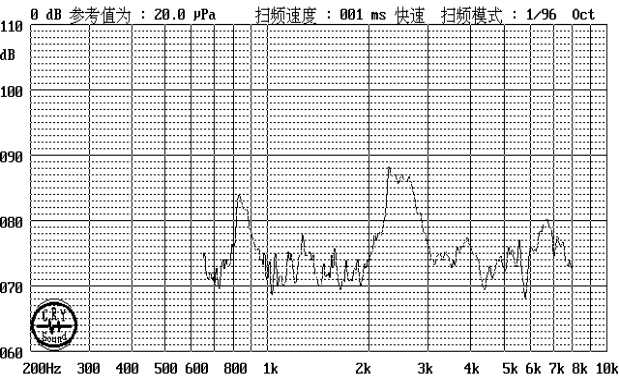

Min Sound Pressure Level | 82dB at 2400HZ at 3Vo-p at 10cm |
Operating Voltage | 2~7V |
Max Current Consumption | <30mA |
Resonant Frequency | 2400Hz |
Coil lmpedance | 42±6Ω |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.3g |
