特點：

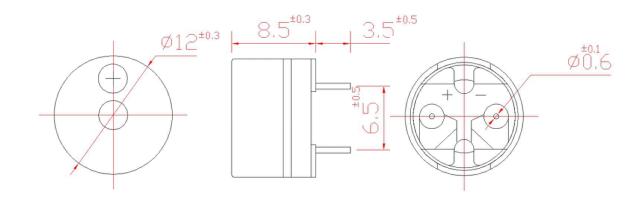

●體積小（12x8.5mm）
●聲壓高（5V時≥85dB）
●消耗電流（≤50mA，5V2048HZ）
●安裝簡便（臥式插入焊接）
電性能參數
Model No | BCE-X12085-0520 |
Min Sound Pressure Level | 85dB at 2048HZ at 5Vo-p at 10cm |
Operating Voltage | 4~7V |
Max Current Consumption | <50mA |
Resonant Frequency | 2048Hz |
Coil lmpedance | 42±6Ω |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.2g |
