特點：

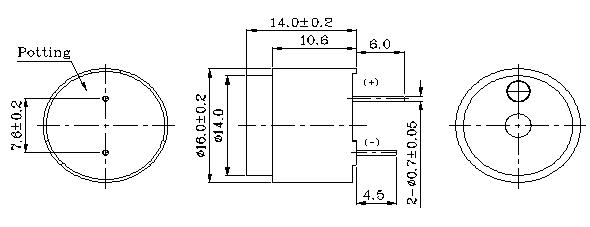

●體積?。?6x14mm）
●聲壓高（5VDC時≥85dB）
●消耗電流（≤30mA，5VDC）
●安裝簡便（臥式插入焊接）
電性能參數
Model No | BCE-D1614 | |
Rated Voltage | 5V | 12V |
Min Sound Pressure Level | 85dB | 85dB |
Operating Voltage | 2-7V | 8-16V |
Max Current Consumption | 30mA | |
Resonant Frequency | 2300±300HZ | |
Housing Material | PPO（PBT） | |
Operating Temperature | -20℃~+70℃ | |
Storage Temperature | -30℃~+80℃ | |
Weight | 1.6g | |
