Characteristic:

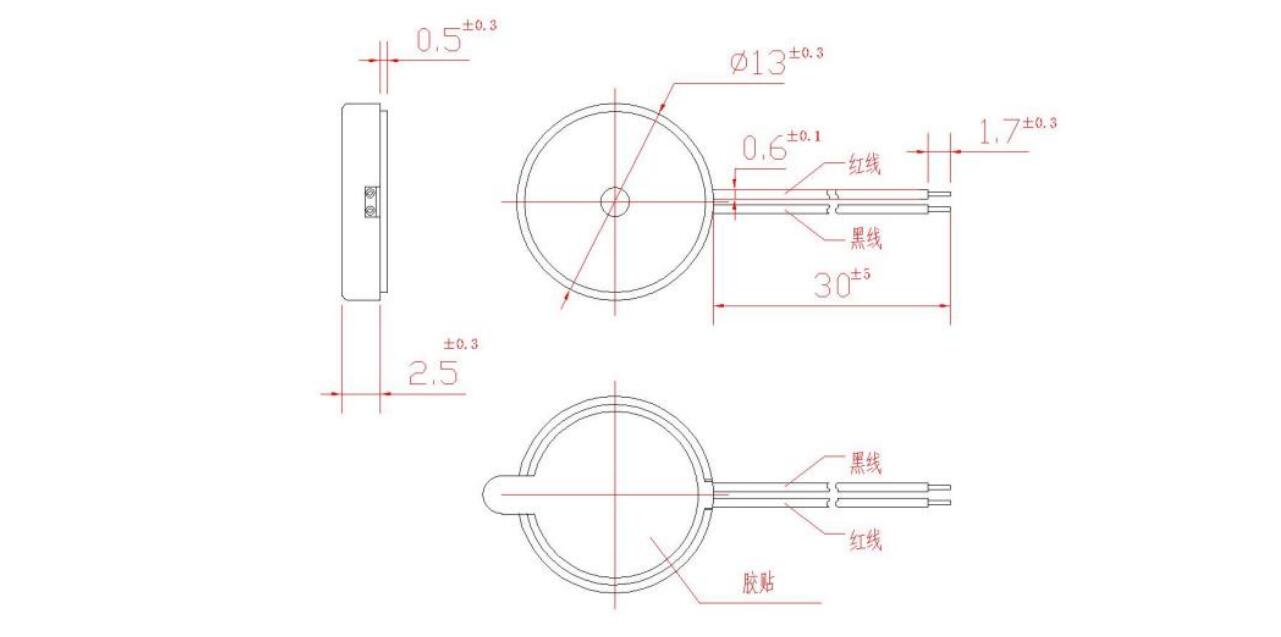

● small size (13x2.5mm)
● high sound pressure (≥ 80dB at 9V)
● low consumption current (≤ 6mA, 9v4.8khz)
● easy installation (film coated lead type)
Electrical performance parameters
Model No | BCE-131 |

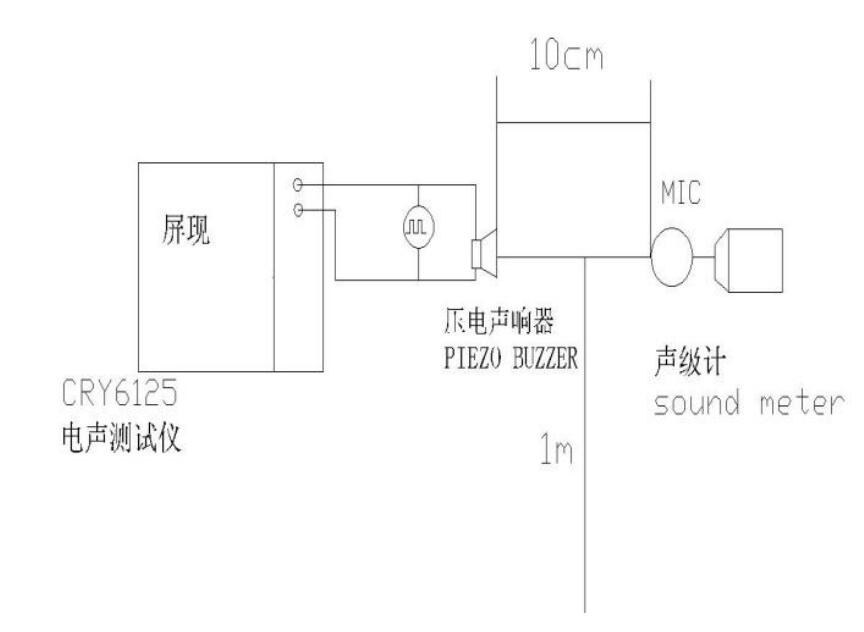

Min Sound Pressure Level | 80dB at 4.8KHZ at 9Vp-p at 10cm |
Operating Voltage | 3~25V |
Max Current Consumption | <6mA |
Resonant Frequency | 4.8±0.5KHz |
Capacitance at 120HZ | 15±30%nF |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.7g |
