特點：

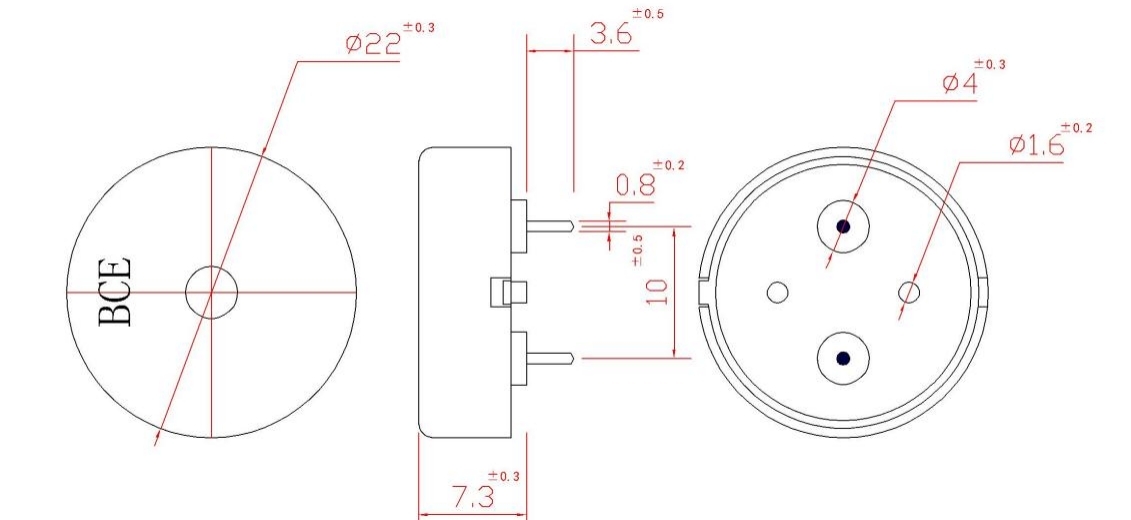

●體積?。?2x7.5mm）
●聲壓高（5V時≥90dB）
●消耗電流小（≤8mA，5V4kHZ）
●安裝簡便（臥式插入焊接）
電性能參數
Model No | BCE-2201 |

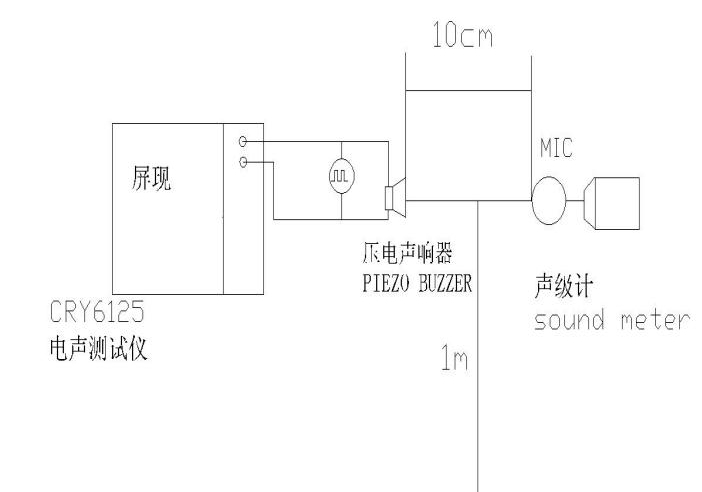

Min Sound Pressure Level | 90dB at 4KHZ at 5Vp-p at 10cm |
Operating Voltage | 3~30V |
Max Current Consumption | <8mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 16±30%nF（30±30%nF） |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 2.0g |
