特點：
●體積?。?2x11mm）
●聲壓高（9V時≥85dB）
●消耗電流小（≤8mA，9V2kHZ）
●安裝簡便（臥式插入焊接）
電性能參數(shù)
Model No | BCE-2301B |

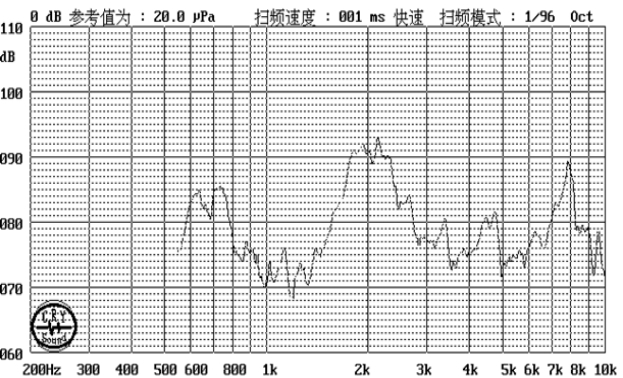

Min Sound Pressure Level | 85dB at 2KHZ at 9Vp-p at 10cm |
Operating Voltage | 3~30V |
Max Current Consumption | <8mA |
Resonant Frequency | 2.0±0.5KHz |
Capacitance at 120HZ | 25±30%nF |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 3.0g |
