特點：
●體積?。?.2x4.2mm）
●聲壓高（3V時≥82dB）
●消耗電流（≤80mA，3V2.7kHZ）
●安裝簡便（臥式插入焊接）
電性能參數
Model No | BCE-X0904-0327 |

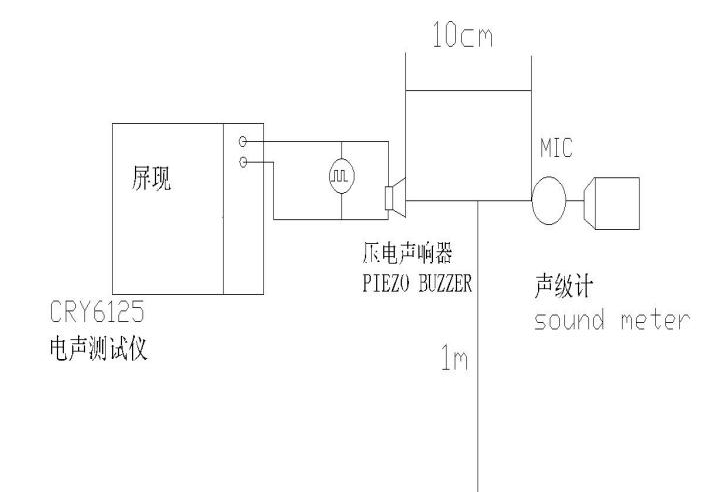

Min Sound Pressure Level | 82dB at 2.7KHZ at 3Vo-p at 10cm |
Operating Voltage | 2~4V |
Max Current Consumption | <80mA |
Resonant Frequency | 2.73KHz |
Coil lmpedance | 16±3Ω |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.8g |
