特點：

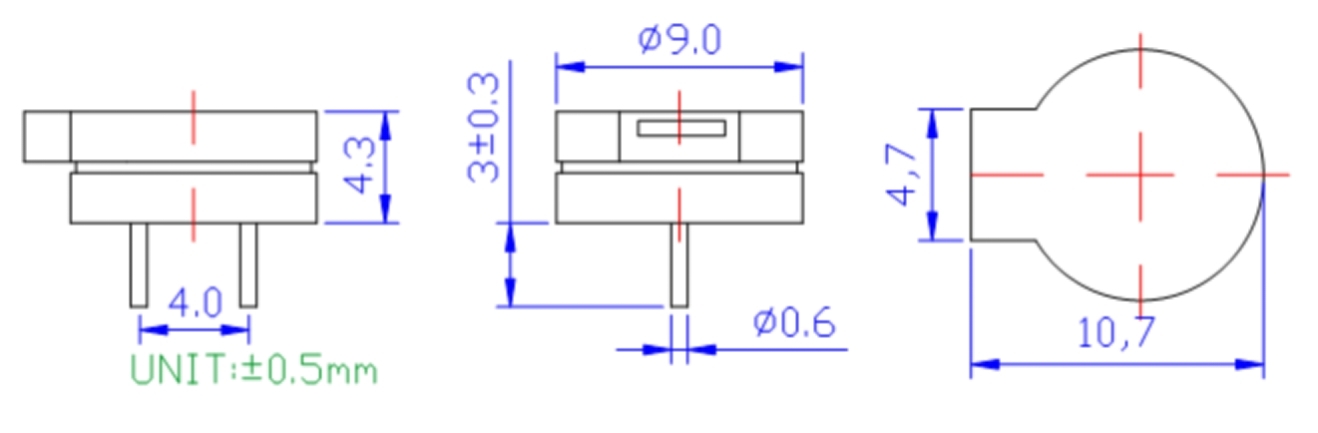

●體積小（9.0x4.3mm）
●聲壓高（3V時≥83dB）
●消耗電流（≤80mA，3V2.7kHZ）
●安裝簡便（貼膜引線式）
電性能參數(shù)
Model No | BCE-X0904C-0327 |
Min Sound Pressure Level | 83dB at 2.7KHZ at 3Vo-p at 10cm |
Operating Voltage | 2~4V |
Max Current Consumption | <80mA |
Resonant Frequency | 2.73KHz |
Coil lmpedance | 16±3Ω |
Housing Material | PPO（PBT） |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.6g |
