特點：

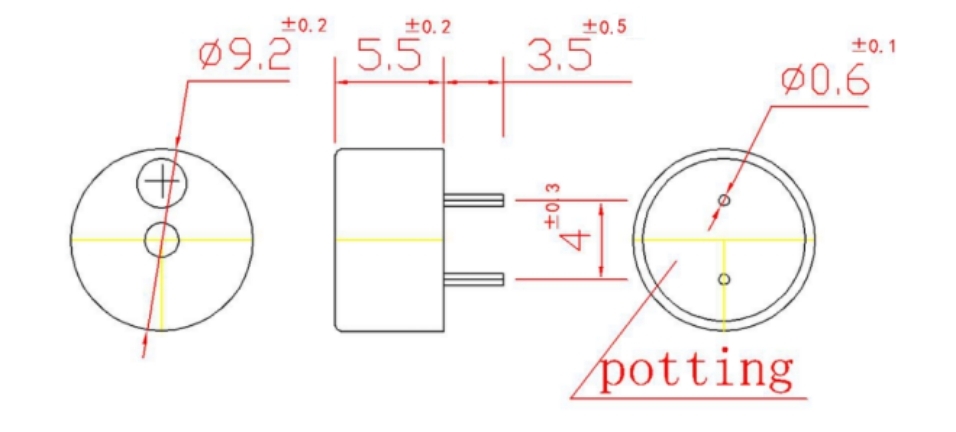

●體積小（9.2x5.5mm）
●聲壓高（5V時≥85dB）
●消耗電流（≤80mA，5V2.7kHZ）
●安裝簡便（臥式插入焊接）
電性能參數
Model No | BCE-X0955-0527 |

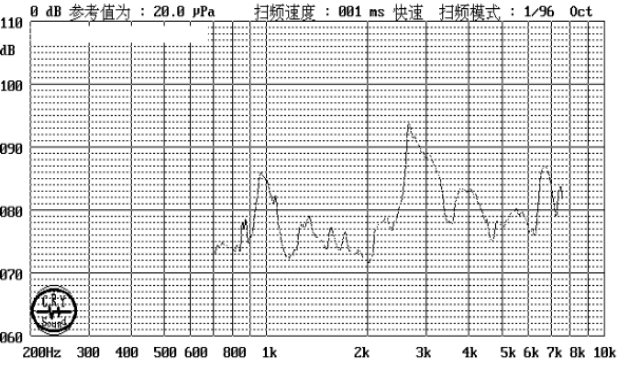

Min Sound Pressure Level | 85dB at 2.7KHZ at 5Vo-p at 10cm |
Operating Voltage | 3~7V |
Max Current Consumption | <80mA |
Resonant Frequency | 2.73KHz |
Coil lmpedance | 42±6Ω |
Housing Material | PPO（PBT） |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.9g |
