Speaker

BCE1511032-R08W0.7-F22

Detail

Electrical performance parameters


Electrical performance parameters

Model  No

BCE1511032-R08W0.7-F22

Rated / Max Input Power

0.7W

Rated Impedance

8±15%Ω

Sound Pressure Level

87±3dB（0.1W/0.1m）at AVE 2.0K

Resonant Frequency（Fo）

600±20%Hz （in free air）850±20%Hz

Frequency Range

Fo~20KHz

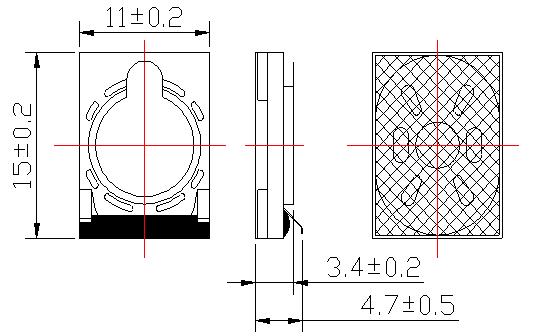

Overall dimension: unit: mm

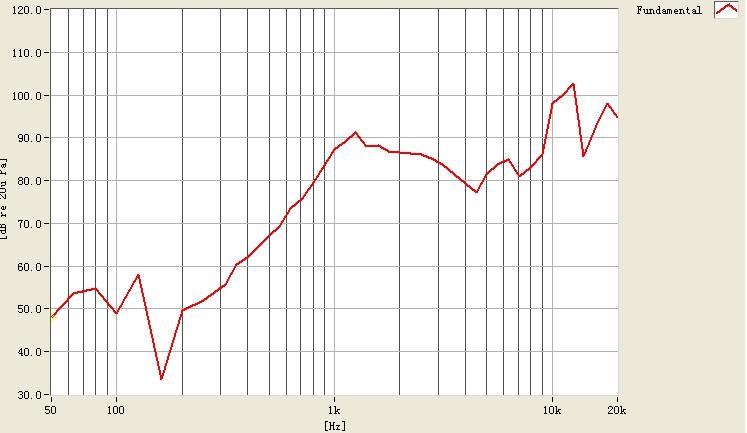

Frequency response curve


Test method and reference circuit
