Speaker

BCE1609030-R06W1.0-D

Detail

Electrical performance parameters


Electrical performance parameters

Model  No

BCE1609030-R06W1.0-D

Rated / Max Input Power

0.94/1.2W

Rated Impedance

6±15%Ω

Sound Pressure Level

91±3dB（2V/0.1m）at AVE1.0K

Resonant Frequency（Fo）

850±20%Hz

Frequency Range

Fo~20KHz

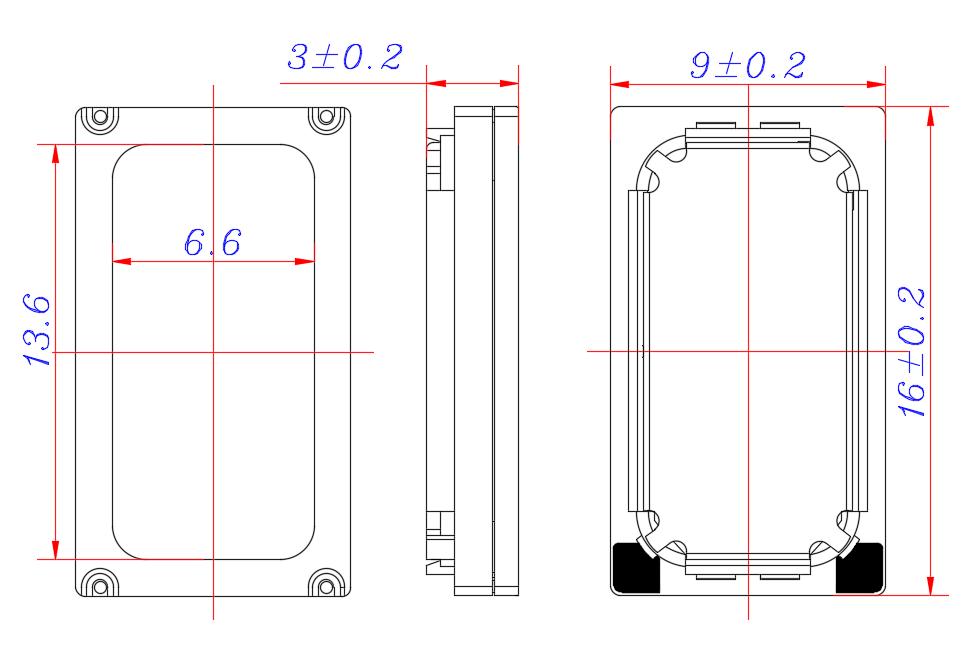

Overall dimension: unit: mm

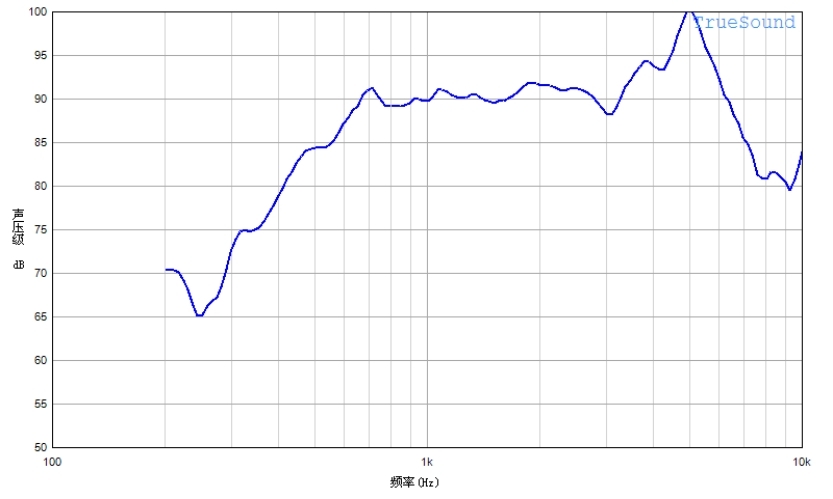

Frequency response curve

Test method and reference circuit
