Speaker

BCE2027059-R08W2.0-A

Detail

Electrical performance parameters


Electrical performance parameters

Model  No

BCE2027059-R08W2.0-A

Rated / Max Input Power

2.0W

Rated Impedance

8±15%Ω

Sound Pressure Level

94±3dB（1W/0.1m）at AVE1.0K 1.2K 1.5K 2.0K

Resonant Frequency（Fo）

850±20%Hz

Frequency Range

Fo~20KHz

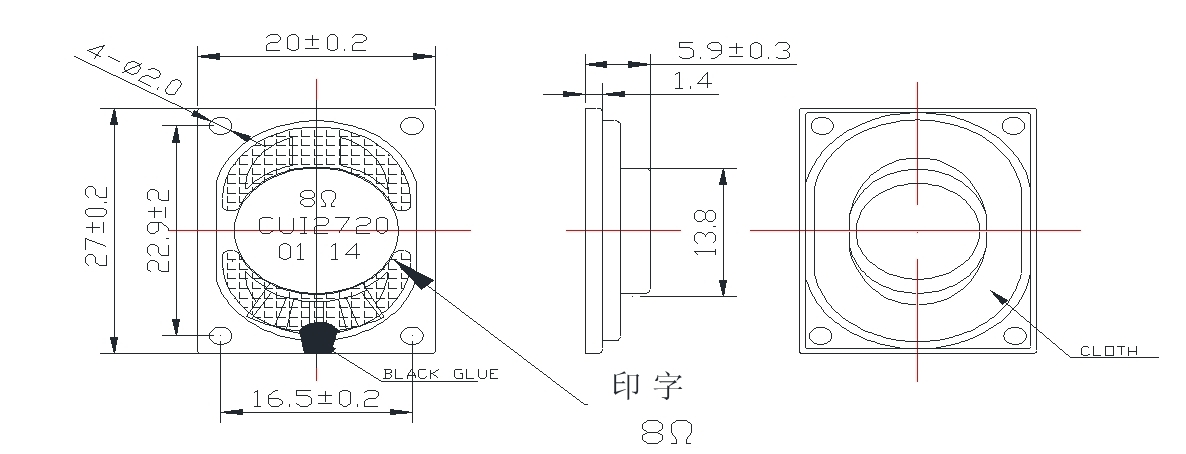

Overall dimension: unit: mm

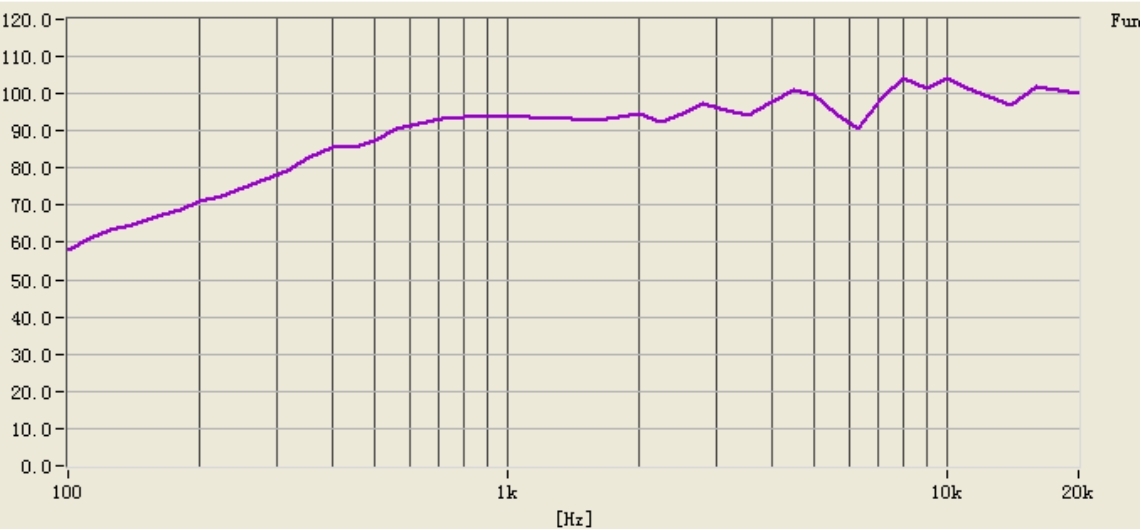

Frequency response curve

Test method and reference circuit
