Speaker

BCE3040150-R04W2.0-A

Detail

Electrical performance parameters


Electrical performance parameters

Model  No

BCE3040150-R04W2.0-A

Rated / Max Input Power

2.0/2.5W

Rated Impedance

4±15%Ω

Sound Pressure Level

88±3dB（0.1W/0.1m）at AVE1.0K 1.2K 1.5K 2.0K

Resonant Frequency（Fo）

1000±20%Hz

Frequency Range

Fo~20KHz

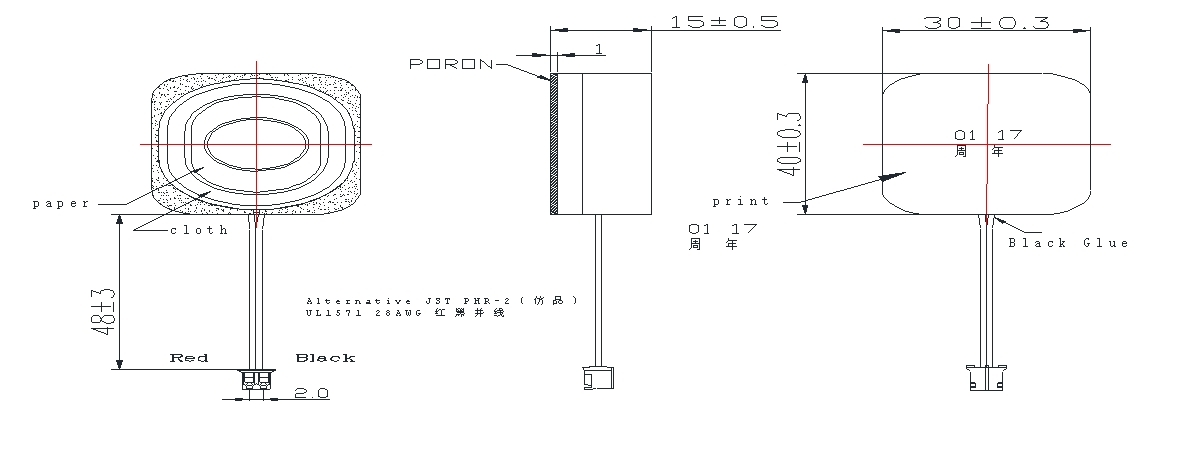

Overall dimension: unit: mm

Frequency response curve

Test method and reference circuit
