Speaker

BCE1318025-R08W0.5-F2

Detail

Electrical performance parameters


Electrical performance parameters

Model  No

BCE1318025-R08W0.5-F2

Rated / Max Input Power

0.5W

Rated Impedance

8±15%Ω

Sound Pressure Level

90±3dB（0.1W/0.1m）at AVE 2.0K

Resonant Frequency（Fo）

850±20%Hz

Frequency Range

Fo~20KHz

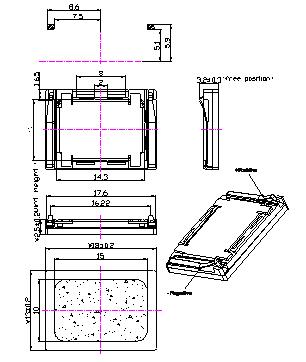

Overall dimension: unit: mm

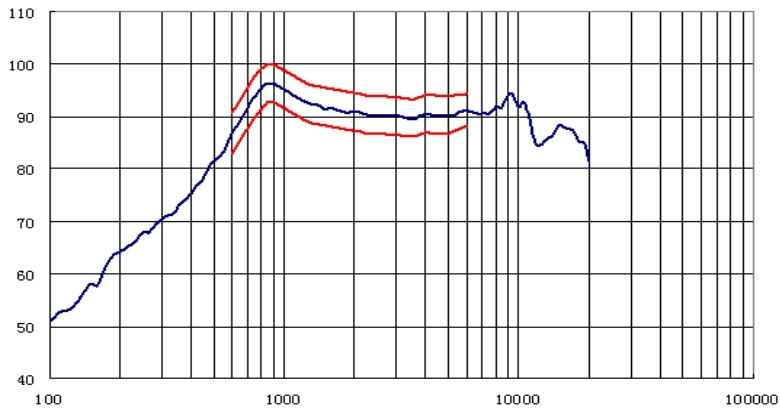

Frequency response curve

Test method and reference circuit
