Speaker

BCE2020045-R08W0.8-A

Detail

Electrical performance parameters


Electrical performance parameters

Model  No

BCE2020045-R08W0.8-A

Rated / Max Input Power

0.8/ 1.0W

Rated Impedance

8±15%Ω

Sound Pressure Level

90±3dB（0.1W/0.1m）at AVE 1.0K 1.6K 2.0K 3.2KHz

Resonant Frequency（Fo）

850±20%Hz

Frequency Range

Fo~20KHz

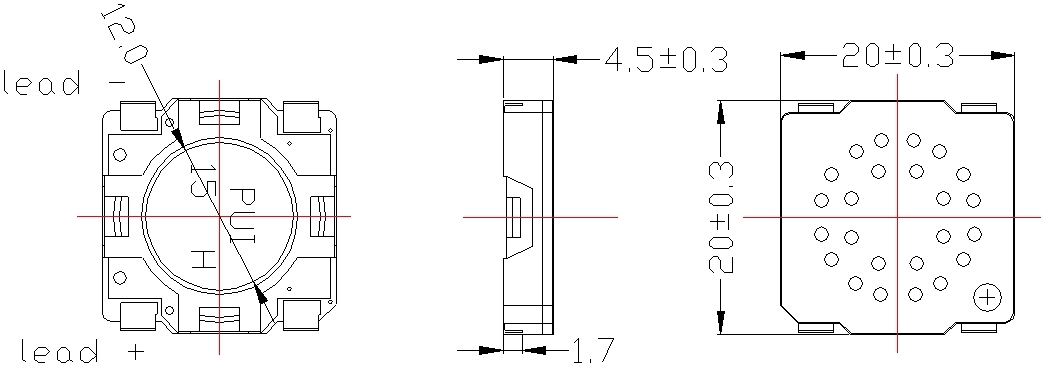

Overall dimension: unit: mm

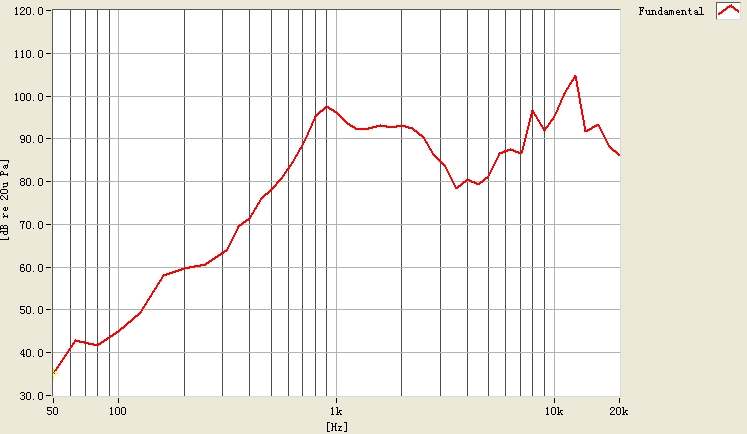

Frequency response curve

Test method and reference circuit
