特點：

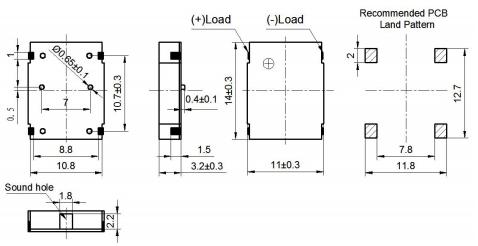

●體積?。?4x11x3.2mm）
●聲壓高（5V時≥90dB）
●消耗電流（≤80mA，5V2.73kHZ）
●安裝簡便（編帶貼片焊接）
電性能參數
Model No | BCE-MX1411 |
Rated Voltage | 5V |
Min Sound Pressure Level | 90dB |
Operating Voltage | 3~7V |
Max Current Consumption | <80mA |

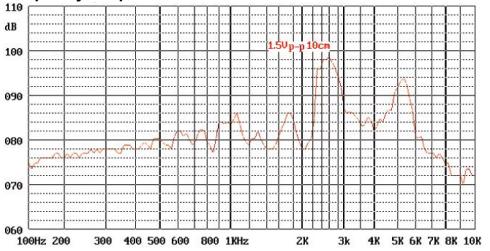

Resonant Frequency | 2.73KHz |
Coil lmpedance | 40±6Ω |
Housing Material | LCP |
Operating Temperature | -30℃~+80℃ |
Storage Temperature | -40℃~+85℃ |
Weight | 0.8g |
